Description
Product description:

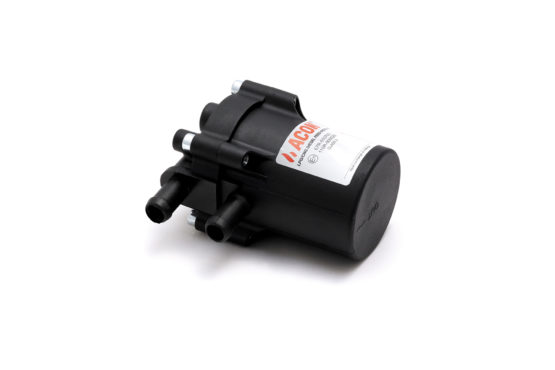

CZAJA BLASTER 12x12 filter.
Technical data:
- Total height 99.5mm
- Width without connectors 56mm
- The diameter of the inlet connector 12mm
- The diameter of the outlet connector 12mm
- Inlet / outlet can be set in four independent directions
- Filter material: polyester
- Replaceable cartridge.
LPG AND CNG FLUID PHASE FILTER WITH REPLACEABLE POLYESTER OIL AND WATER SEPARATING CARTRIDGE.
Case material:
Plastic
Inlet / outlet connection diameter:
ø 11, 12, 14, 16 mm / ø 11, 12, 14, 16 mm
Available in all combinations of inlet and outlet diameters.
The inlet / outlet can be mounted in four independent directions.
Assembled with four M5x25 Allen screws with spring washers.
Filter Material:
Polyester OH
Filter surface / Particles captured:
0.017 m2 / from 1μm in 99%
Capacity:
250l / (m2 · s)
Replaceable filter cartridge symbol:
FLBL
